HOWO 4x2 Mobile Stage Truck With LED Billboard

Brand Name : CLW

Model Number : CLW20120708

Certification : CCC, ISO9001. BV, SGS

Place of Origin : SUIZHOU, HUBEI, CHINA

MOQ : 1 UNIT

Price : Negotiatable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 units per month

Delivery Time : 25 working days

Packaging Details : Naked or Waxed before delivery

Pixel Pitch(mm) : 4.0mm; 5.0mm; 6.0mm

Drive Model : 4X2/6 Wheels/4*2 6 wheeler

Wheelbase(mm) : 3300mm; 3306mm; 3360mm; 3400mm

Screen Size : 6m2; 6.5m2; 7m2; as Per Chassis Size

Picture Tube Chip Color : Full Color and Monochrome

Generator : 8kw; 10kw; 12kw; 15kw; 18kw; 20kw

Generator Fuel Type : Diesel/Gasoline

LED screen : SMD P4 P5 P6 P8 for optional

Loudspeaker : 40W; 60W; 80W; 100W

Lifting System : Optional

Hydraulic Unit : China Local Brand

Landing Leg : Optional; 2 PCS or 4 Pics

Fan : China Local Brand; 2 PCS

Mobile Stage : Optional; 4.4m2 or as Per Customer

Amplifiter : 120W; 240W; 360W; 420W

Contact Now

China Mobile Stage Truck LED Billboard Truck HOWO 4x2 LED Advertisement Truck LED Advertising Truck



Product Description
1. Purpose: For mobile advertising, products promotion, branding, concerts and so on. It can on-site display, exchange, interaction, wide publicity and gain great effective of advertising.
2. Main parts: LED screen, Generator set, Computer, Control system etc.
3. Optional items: Mobile stage, Scrolling light box.
4. LED screen: SMD P4 P5 P6 P8 for optional.
5. Generator brand: China famous brand and Internation brand for optional



Specification for China Mobile Stage Truck LED Billboard Truck HOWO 4x2 LED Advertisement Truck LED Advertising Truck

Cabin

Driving type 4x2






1880 cab ,with two seats, with A/C,with

wind deflector. Right hand driven.




Vehicle Main Dimensions Overall dimensions (L x W x H)mm 6000×2300×3100
  Wheel base (mm) 3360
  Wheel track (front/rear) (mm) 1605/1540
  Approach/Departure angle(°) 20/13
Weight in KGS Tare Weight 3200
  payload 5000
  Front axles loading capacity 1x3000
  Rear axles loading capacity 1x5200
Max. driving speed(km/h) 90
Engine Brand Yunnei Power
  Model YN4102
  Horse Power(HP) 116HP
  Emission standard Euro Ⅱ
Gearbox WLY6T46 , 6 forwards & 1 reverse
Steering Right hand driven
Fuel tank 120 L
Tire 7.00R16 radial steel tires with one spare



LED Advertising Screen System

1. Right and left side P6 LED outdoor full colour display screen, size 3840mm*1792mm for each display screen. Can be liftable.

2. Rear LED monochrome screen,size 1280mm *1440 mm

3. Internal and external electrical distribution box

4. Circulating ventilation and cooling systems

5. OUMA Silent diesel generator set,15KW

6. One set industrial computer with control system,sound system

7. Waterproof box 2pcs, amplifier 1pc, Control Panel 1pc.

8. With built-in stage

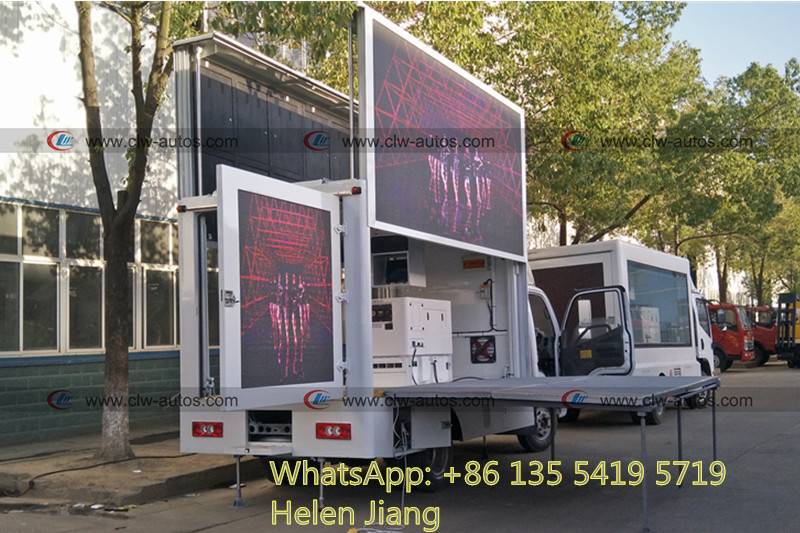

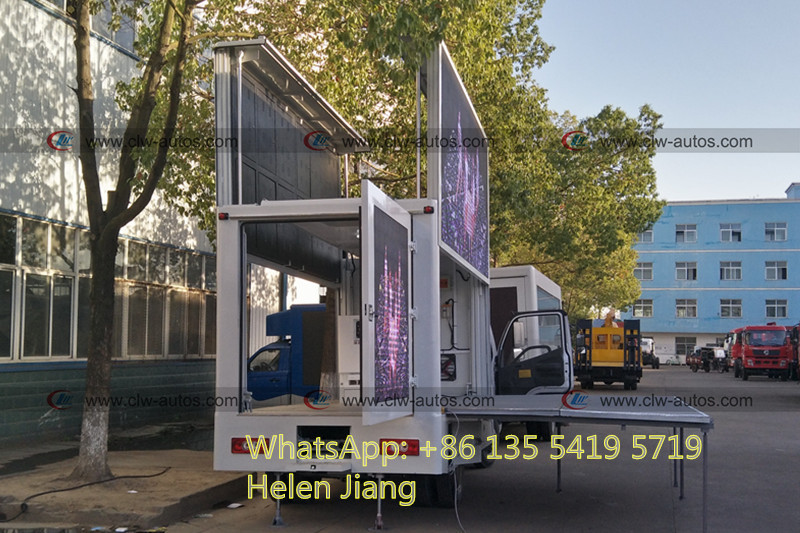

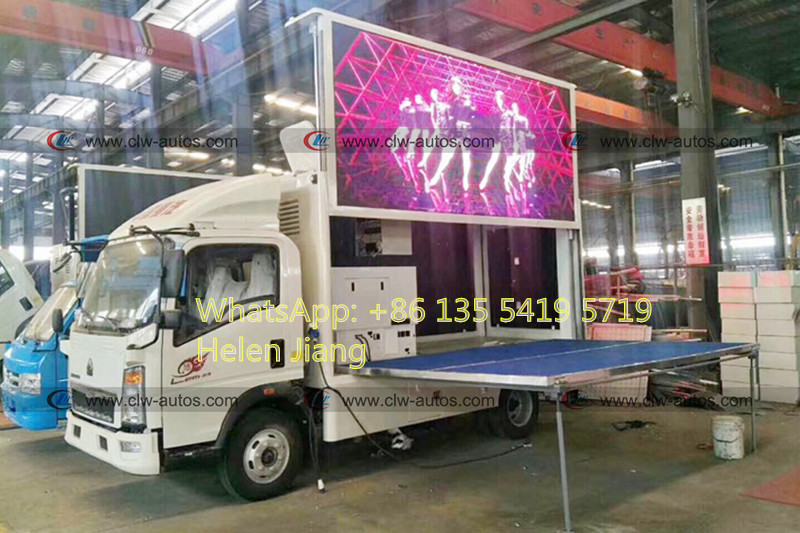

More Pictures for HOWO LED Advertising Truck:

HOWO 4x2 Mobile Stage Truck With LED BillboardHOWO 4x2 Mobile Stage Truck With LED BillboardHOWO 4x2 Mobile Stage Truck With LED BillboardHOWO 4x2 Mobile Stage Truck With LED Billboard

The standard configuration is led outdoor high-definition LED color screen on the driver's side and toughened glass light box on the right side of the container; The rear of the container is a monochrome subtitle screen, with the size of 1280 mm * 1440 mm; Configuration in the container: engine (optional gasoline engine, diesel engine, battery power supply), console, industrial computer, LCD, power amplifier, audio, exhaust skylight, powerful exhaust fan, aluminum decorative plate interior, wooden floor, screen waterproof box, roller, etc.

Users can choose different configurations according to their needs: 1. 3sides roller glass light box
2. One side color screen, other side glass light box.
3. One side color screen, and the other side truck is unfolded.
4. Double sided color screen.
5. Hydraulic lifting of left LED screen.
6. Stage.





FAQ:



Q: How many type of screens LED advertising truck have?
A: The LED advertising car can use single-sided full-color screen, double-sided full-color screen, three sided full-color screen, left single-sided full-color screen, right tempered glass roller plus spray painting, and back monochrome subtitle screen.
Q: What are the configuration parameters of the waterproof advertising truck?
A: The advertising truck uses a silent generator, or you can choose a battery. It is recommended to use a generator, because the battery has been used for a long time, there is a lack of electricity and insufficient charging, which greatly reduces the efficiency of advertising, delays the time, and the generator voltage is stable and durable, which can ensure the normal operation and improve the work efficiency.
Q: What are the color screen specifications of advertising vehicles?
A: Our company adopts P6, P5, P4 screen (the smaller the value, the higher the definition and the more expensive the price) and other common specifications, imported wick, two-yearS warranty.
Q: What are the components of the LED screen waterproof advertising truck?
A: The chassis, color screen and carriage are 5cm composite steel frame box, wooden floor, internal and external power distribution box, circulating energy wind cooling system, silent generator, 1 industrial control computer with system, 4 waterproof speakers, 1 power amplifier, 1 set, optional screen lifting, stage, complete vehicle By the Ministry of industry and information technology approval advertising vehicle announcement and advertising vehicle manufacturers issued vehicle certificate! Make sure the quality of the truck.
Q: Which models are the advertising vehicles divided into?
A: first of all, small advertising vehicles are Foton Xiangling's and Chang'an's (screen size: 2304L* 1536H(mm), 3.6 square meters of side screen and 1.22 square meters of tail screen), small and medium-sized advertising vehicles are Dongfeng tuyi's, (screen size: 2884x long, 1660mm high, 4.6 square meters of side screen and 1.64 square meters of tail screen), medium-sized advertising vehicles are Foton Kangrui, FAW Jiefang, Dongfeng frica Isuzu, etc. (screen size: side screen length 3840mm x height 1760mm, tail screen 1.8m2)
Q: How to deal with the operation of advertising car?
A: Our factory has professional and technical personnel for free VIDEO guidance and training.
