Automatic 12m Cherry Picker Aerial Lift Truck Electronical Controlled Lifting

Brand Name : CLW

Model Number : CLW5140GK

Certification : CCC,ISO,SGS,BV

Place of Origin : Suizhou,China

MOQ : 1

Price : negotiable

Payment Terms : D/A, D/P, Western Union, MoneyGram

Supply Ability : 600Unit Per Month

Delivery Time : 35-40 Days

Packaging Details : Naked Pack with Wax

Chassis brand : Dongfeng,ISUZU,JAC,JMC,Forland,Foton

Lifting height(m) : 10m, 12m, 14m, 16m

Operating height(m) : 12m, 14m, 16m, 18m

Control mode : Control handle/Remove control

Drive model : 4x2; 4x4; As per upper design and customer request

Color : Red/Yellow/Blue/Green/Optional

Contact Now

12m Cherry picker 14m 4x2 operating height boom truck 12m aerial lift truck for sale



Product Description

1. Electronical controlled Lifting Arm with Doulbe Side Balance Vavle.
2. Four Hydraulic Cylinders Control Leg to ensure the Truck Balance.
3. 360 degree Rotation Arms.
4. Arm and H leg Automatic Locking System to secure safety handling

Condition New condition/4x2
Chassis Curb weight(kg) 5100 kg
Wheelbase(mm) 3360 mm
Dimensions(mm) 7600*2000*3200 mm
Wheel track (front/rear) (mm) 1160/2150 mm
Approach/Departure angle(°) 18/12
Front/Rear axle loading(kg) 2000/3500 kg
Max. driving speed(km/h) 95
Brand SINOTRUK
Model HOWO
Tire

Quantity 6pcs with one spare tire
Specifications 7.00R16
Clutch Reinforced diaphragm clutch
Transmission Manual type, 6 Forwards and 1 reverse
Cab

Single cabin two door. It can accommodate three people

With Air conditioning

Engine Model CY
Fuel type Diesel
Displacement(ml) 3856 ml
Power(kw)/Horsepower(HP) 88 kw/120 HP
Emission standard Euro 3
Cylinder number 4
Brakes

Service brake: Dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust valve brake

Steering Gear Power steering, hydraulic steering with power assistance
Upper Bucket body Q235 Carbon steel
Bucket Interior Fiber glass plate
Working bucket Max. Weight(kg/bls) 200/450
Max. Lifting Height(m) 10.3m 12.3 m 14.3m 16.3m
Loading leg No. 4pcs hydraulic loading leg
Working Platform 360°turning(left or right), H-shape legs 360°

Products Show

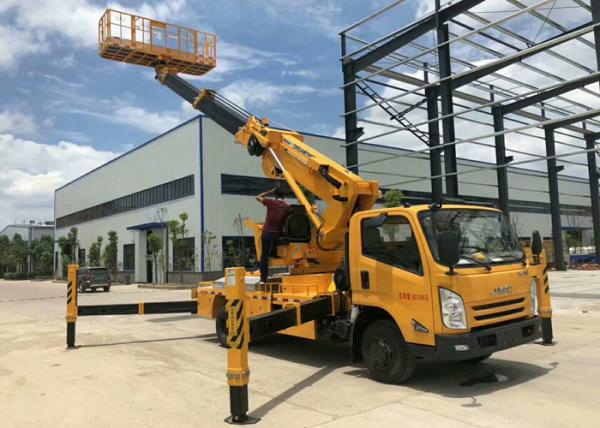

Automatic 12m Cherry Picker Aerial Lift Truck Electronical Controlled Lifting

Automatic 12m Cherry Picker Aerial Lift Truck Electronical Controlled Lifting

Automatic 12m Cherry Picker Aerial Lift Truck Electronical Controlled Lifting



Truck mounted aeriel platform truck is uaually applied in following working situation:

1) High altitude photography

2) High altitude working of changing outdoor advertisement

3) Maintenance of street lamps

4) Indoor working

5) Clipping trees

6) Working for bridge building



Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.





FAQ



Q1: What kinds of truck mounted aeriel platform I can order from your company?


A: There are various sizes and types of arerial platform trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.



Q2:: Have you supplied truck mounted aeriel platform to any overseas companies?


A: Yes,with need of government project,we offered aerial platform trucks to many Africa and south-east Asian countries.



Q3 What about warranty?


A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.



Q5: Where is your factory? How far from Shanghai to your factory?


A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
